How To Replace The Membrane

You can read the steps below to see how you can replace the membrane. If you want to print this guide to keep beside you while performing the actions, you can download this file.

Download Guide

Replacing The Membrane

Step 1

Place the membrane over the supplied pins.

Step 2

Mark the location of where to put the O-rings.

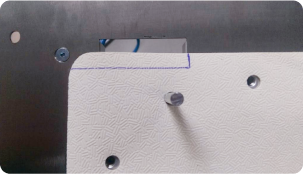

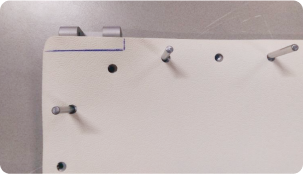

Step 3

Mark the location where the hinges should be.

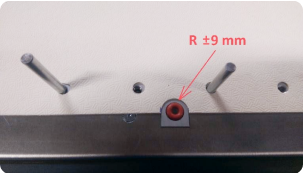

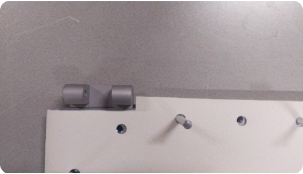

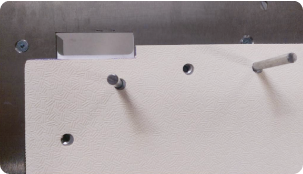

Step 4

Mark the location where the hinges should be.

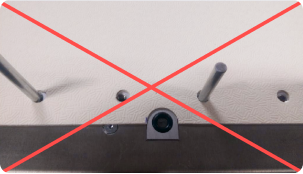

Step 5

Note that the old black O-ring is removed and replaced with the new red O-ring!

Step 6

Place the flange over the supplied pins.

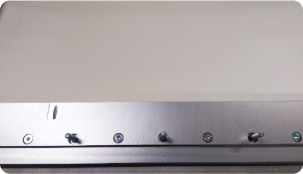

Step 7

Place the bolts.

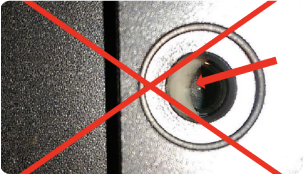

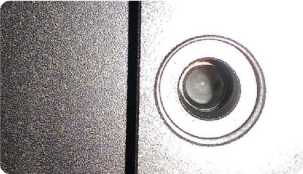

Step 8

Ensure that the membrane holes are good in position before placing the bolts!

Step 9

Remove the supplied pins and insert the other bolts.

Step 10

Tighten the bolts with a torque wrench to 4 Nm (tighten the bolts for two rounds).
