Machine Messages
The machine displays certain messages, which are explained in the manual in Chapter 2.1. You can read these messages below or download the entire page by clicking the button below.
Machine Messages
Pack OK
The result of the measurement is positive, no leak/s found.

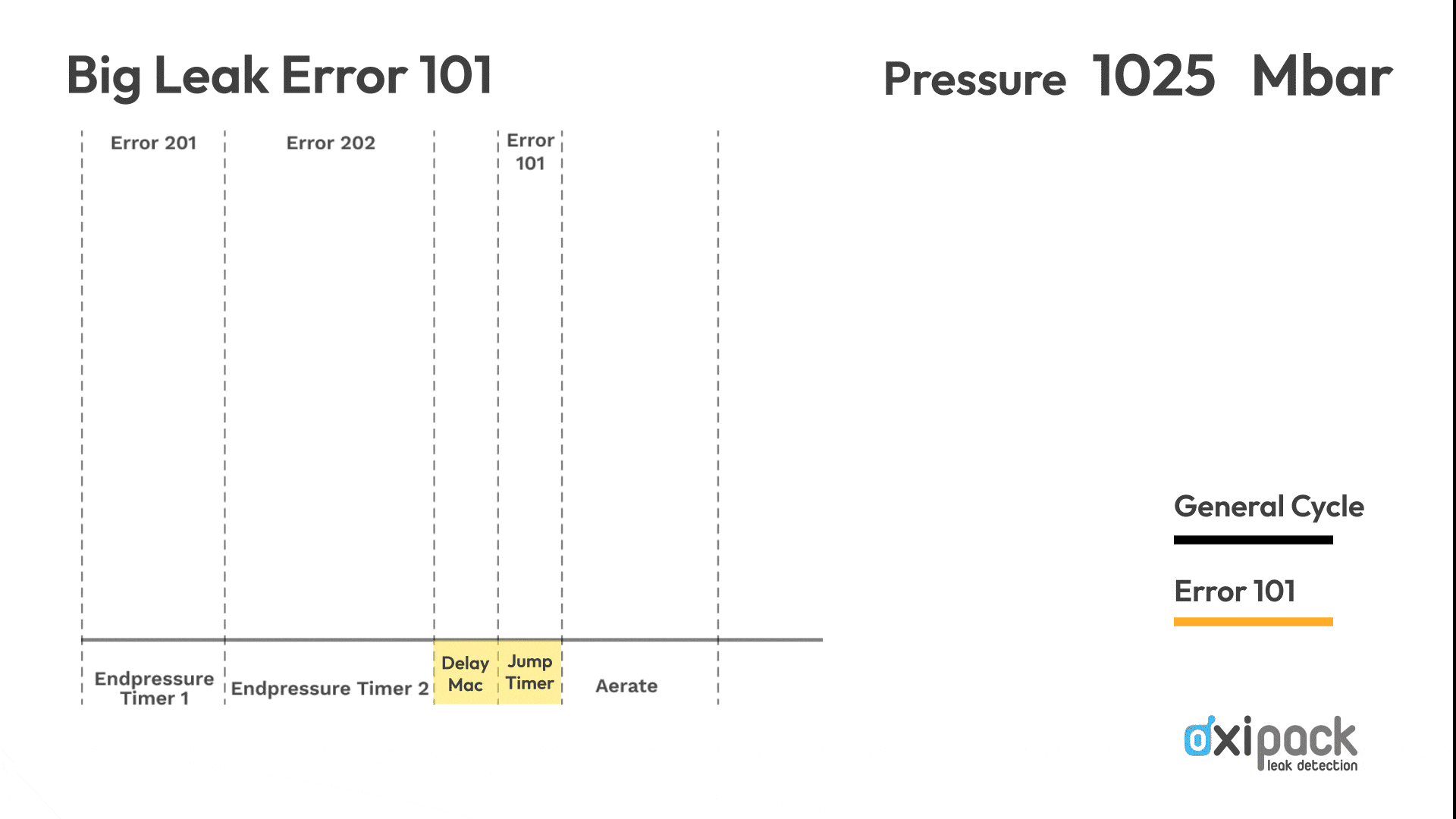

A large leak has been detected (Error message 101 in logfile)
The measured pressure exceeds the set value. This could be caused by one of two issues:
1. Large hole in the pack
2. The membrane has a leak

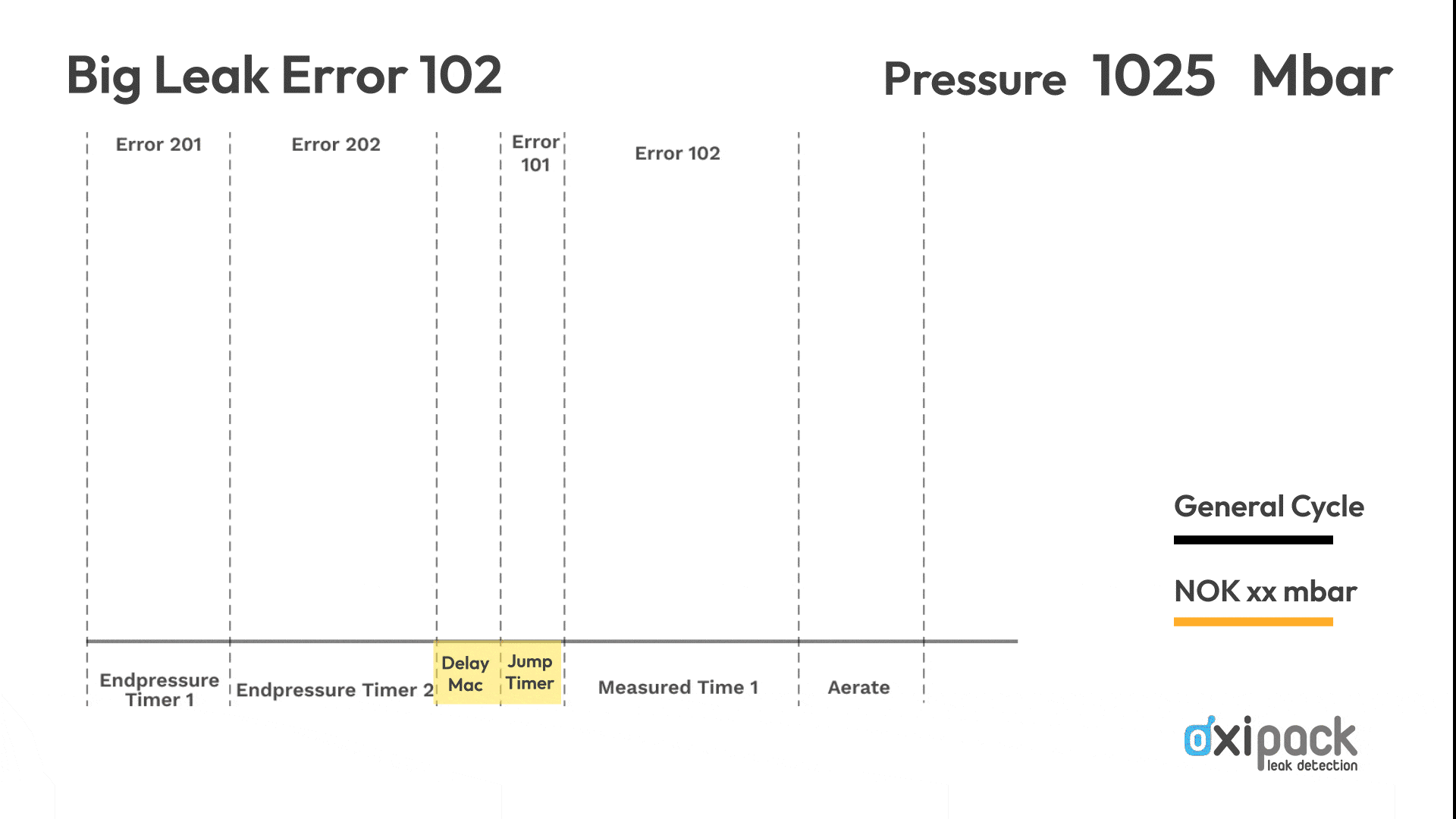

A large leak has been detected (Error message 102 in logfile)
The measured pressure exceeds the set value. This could be caused by one of two issues:
1. Large hole in the pack
2. The membrane has a leak

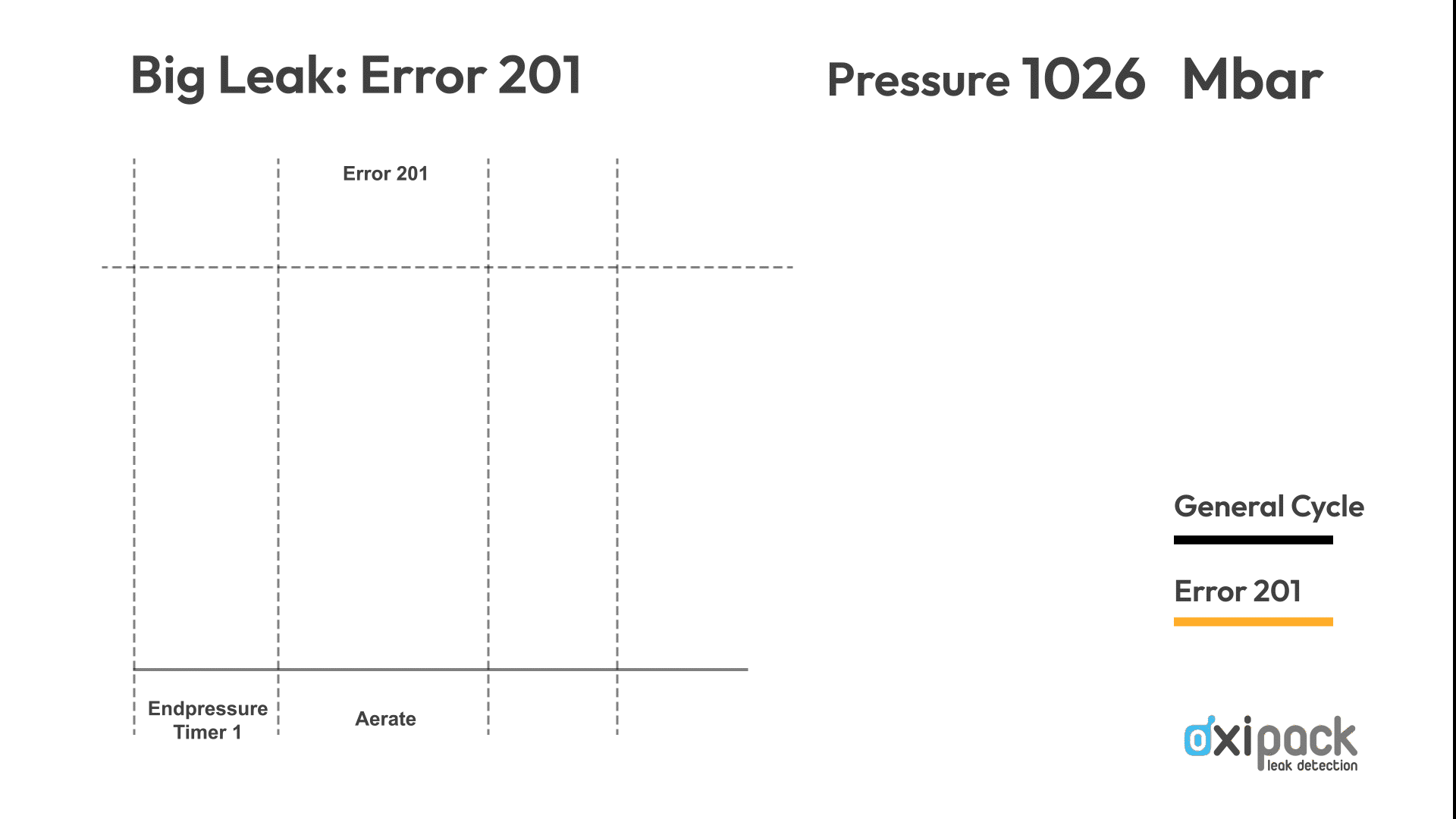

Error message 201
The pressure in the measurement space is not reaching the target value within the set time. This could indicate one of two problems:
1. Pack leak / Big hole
2. The membrane has a leak

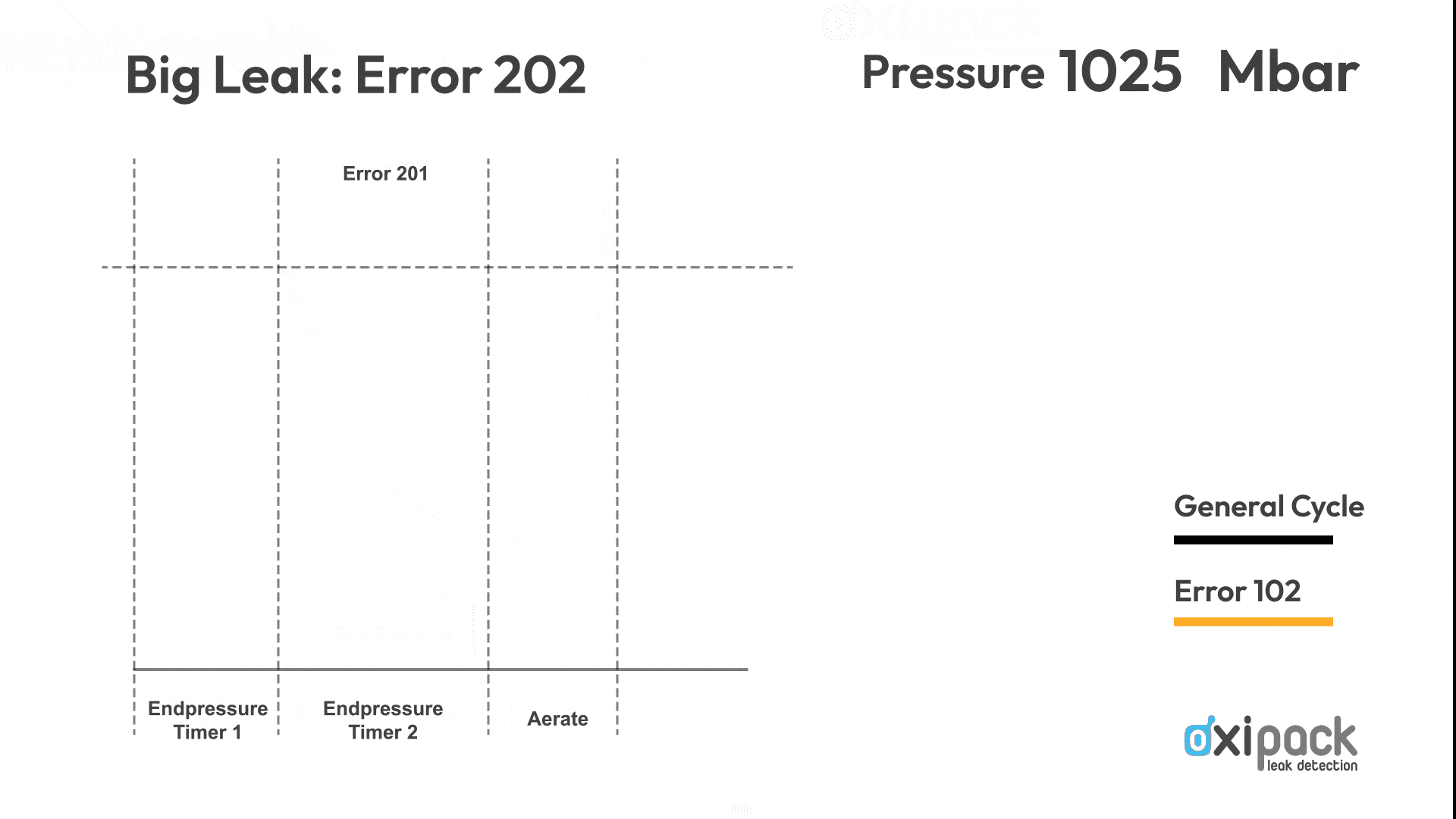

Error message 202
The pressure in the measurement space is not reaching the target value within the set time. This could indicate one of two problems:
1. Pack leak / Big hole
2. The membrane has a leak
Error 203
The main valve did not function properly. Please contact Oxipack support for assistance.
Pack leak mbar (error message in logfile -xx)
The result of the measurement is above the set value, indicating one of the following issues:
1. There is a leak in the pack
2. The membrane has a leak
Sensor error
The sensor has no signal. Please contact Oxipack support for assistance.
