Quick Start Guide

You can read the steps below to find out how to quickly start testing. For more detailed instructions, you can download the manual to keep beside you while performing the actions.

Download The Manual Here

Quick Start Guide

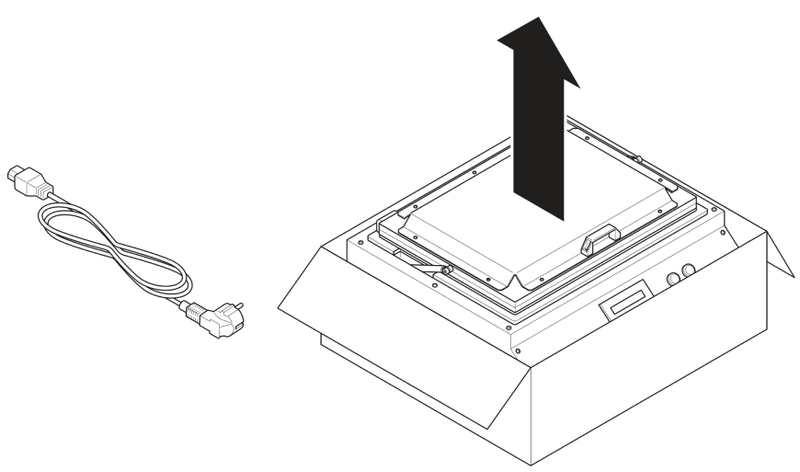

Step 1

Remove the machine from the packaging carefully.

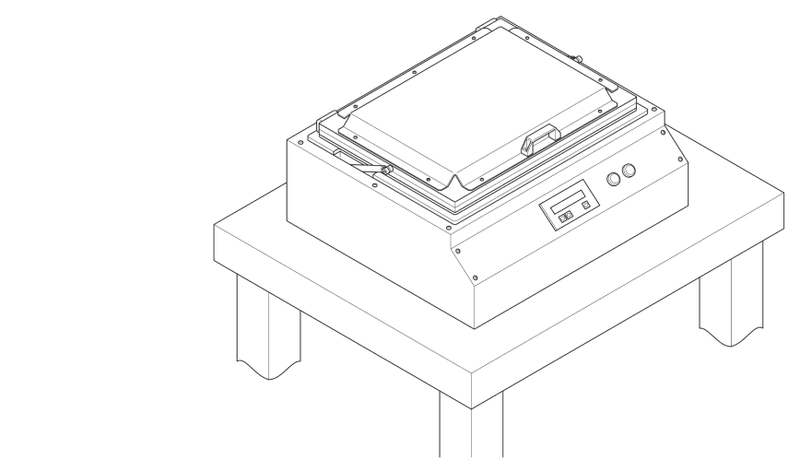

Step 2

Place the Oxipack leak tester in upright position on a flat and sturdy work surface.

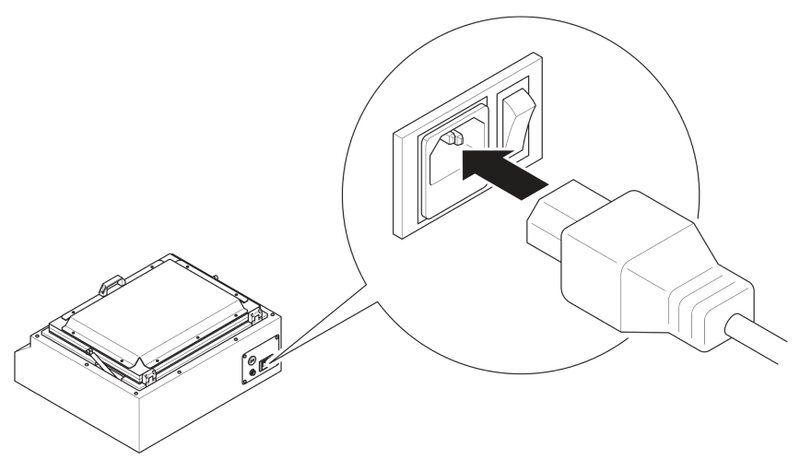

Step 3

Connect the power cable (100 – 240 V / 50 – 60 Hz).

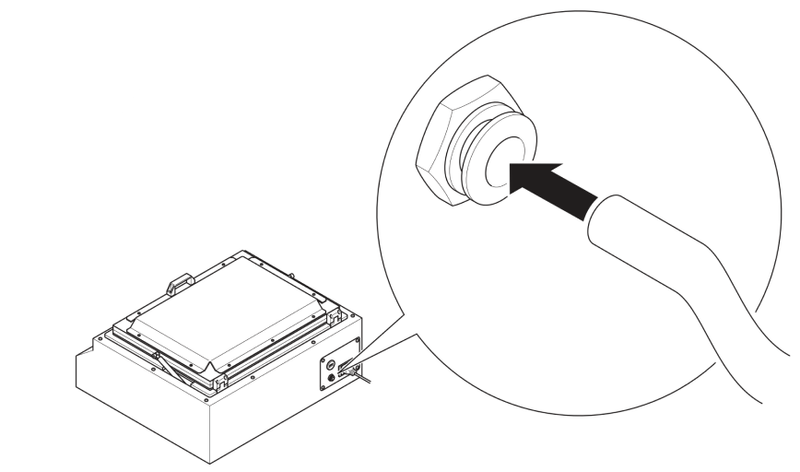

Step 4

Connect the air supply hose (Ø 8 mm). Ensure that the compressed air pressure is between 6 – 8 bar.

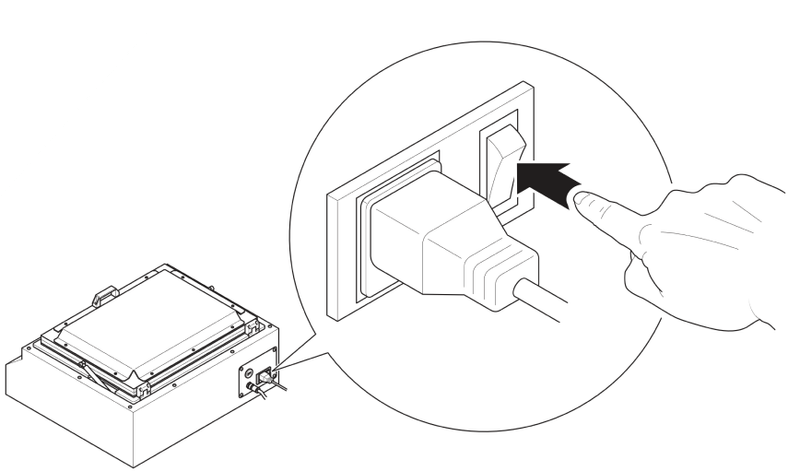

Step 5

Turn the ON/OFF switch in the ON position. The ON/OFF switch lights up red.

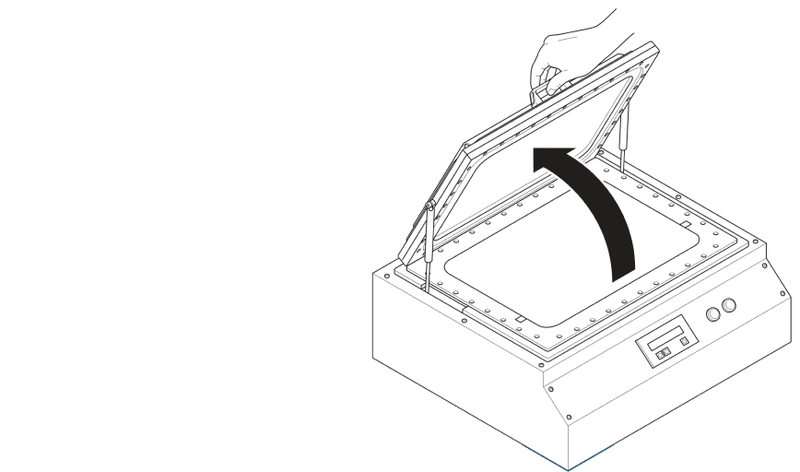

Step 6

Open the lid. Make sure that the measurement chamber is empty.

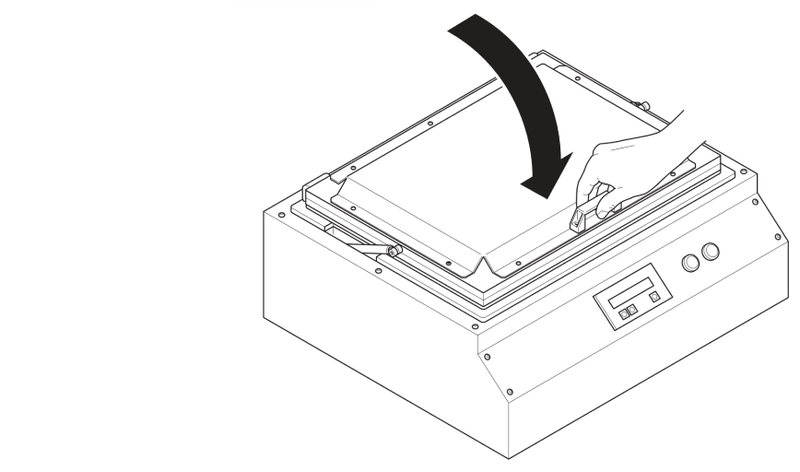

Step 7

Close the lid and press the green Start button. Measurement starts. If the end result is OK: The green Start button lights up green. If the end result is NOT OK: The red Stop button lights up red. Please contact us!
